Serum level of transforming growth factor-beta1 in major idiopathic interstitial pneumonia

The Egyptian Journal of Bronchology volume 14, Article number: 22 (2020) Cite this article

Abstract

Background

Different inflammatory cytokines play a role in the mechanism and pathogenesis of fibrosis in idiopathic interstitial pneumonia (IIP). Transforming growth factor-beta1 (TGF-β1) has become a subject of interest. The aim of the work is to measure the serum level of TGF-β1 in different forms of major IIP and to find out its relation to the patients’ clinical and arterial blood gases’ parameters.

Results

The patients’ group showed significant elevation of serum level of TGF-β1 in comparison with the control group (P value < 0.001). In patients with IPF, the serum level of TGF-β1 was not significantly increased compared to patients with other forms of major IIP (mean ± SD = 300 ± 84.52 versus 340 ± 131.20 pg/ml, P value = 0.32). There was an inverse negative correlation between the age and serum level of TGF-β1 (r = − 0.39; P = 0.03). An inverse non-significant correlation was found between the serum level of TGF-β1 and the dyspnoea score (r = − 0.30, P = 0.11). However, there was a significant positive correlation between the serum level of TGF-β1 and the distance of 6-MWT (r = 0.44; P = 0.02). It was also found that there was a positive correlation between the serum level of TGF-β1 and both arterial oxygen pressure (PaO2) (r = 0.39, P = 0.03) and arterial oxygen saturation (r = 0.33, P = 0.07).

Conclusion

Serum level of TGF-β1 is elevated in patients with IIP and it positively correlated to both 6-MWD and PaO2. Further larger studies are needed to evaluate its prognostic value.

Background

Idiopathic interstitial pneumonias (IIP) are interstitial lung diseases (ILD) of unknown aetiology that have similar clinical and radiological features. They differ primarily by the histological patterns on lung biopsy [1, 2].

Transforming growth factor beta1 is a multifunctional peptide that controls proliferation, differentiation of many cells. It is considered one of the profibrotic cytokines and it is produced in the lung by many cell types including alveolar macrophages, neutrophils, activated alveolar epithelial cells, fibroblast and myofibroblasts [3].

The potential importance of TGF-β1 in the pathogenesis of IIP is suggested by studies showing high levels of serum TGF-β1 are associated with increased fibrosis [4, 5].

The aim of the study was to measure the serum level of TGF-β1 in IIP and to find out its relation to the clinical parameters, including age, sex, dyspnoea score and distance of six-minute walk test (6-MWT).

Methods

A prospective case-control study that was carried out at the Chest Department, Kasr Al-Ainy Hospital, Cairo University, in collaboration with the Pharmaceutical Biotechnology Department between February 2016 and April 2017. Thirty patients with major IIP were included in the study: fifteen patients with idiopathic pulmonary fibrosis and 15 patients with other forms of major IIP.

They were diagnosed based on a multidisciplinary review of the clinical, radiological and pathological data according to the guidelines of the international consensus statement produced as a collaborative effort from the American Thoracic Society and European Respiratory Society Guidelines 2013 [2]. Twenty healthy individuals were included as a control group.

This human study was approved by the ethical committee of the Faculty of Medicine, Cairo University. All adult participants provided written informed consent to participate in the study.

All patients were subjected to the following:

  1. 1.

    Thorough history taking and clinical examination including; age, sex, smoking status, modified Medical Research Council scale (mMRC) for dyspnoea.

  2. 2.

    Spirometry: It was performed using master screen Jager-D 97204 Hochberg Germany.

Manoeuvre of the flow volume loop:

  • Calibration of the system was done each time.

  • Explanation of the procedure to each patient.

  • The nose was clipped by the nose clip and the patient was connected to the mouthpiece.

  • Every patient was instructed to breathe tidally for several times then to inhale slowly till total lung capacity (TLC), then to exhale forcibly as much as possible.

  • The procedure was repeated three times and the best result was selected according to forced vital capacity (FVC) and forced expiratory volume in the 1st second (FEV1) [6].

The following data were obtained and interpreted:

Measurement of the FEV1% predicted, FVC% predicted, FEV1/FVC% and forced expiratory flow (FEF25–75% predicted). The presence of an FEV1/FVC > 0.70 together with FVC < 80% predicated confirm the presence of restriction.

The severity of restriction was determined according to the results of FVC as follows [6]: mild restriction, FVC 60–80%; moderate, FVC 40–59%; and severe restriction, FVC less than 40%.

Six-minute walk test (6-MWT)

Every patient was instructed to wear his/her comfortable footwear. The patient’s usual medication should be continued and the patient should not have exercised vigorously within 2 h before the beginning of the test. Measurement of the distance walked as far as possible for 6 min [7].

Measurement of arterial blood gases (ABGS)

One millilitre of arterial blood was obtained from the radial artery in a heparinized needle and then taken immediately to a blood gas analyzer (pHOx plus C) to assess the PH, PaO2, PaCO2 and SaO2. Calculation of alveolar-arterial oxygen pressure difference (PA-aO2) was carried out.

Measurement of serum level of TGF-β1

Serum collection and preparation

Three millilitres of blood sample was taken from each person and poured into a clot tube, and the coagulated serum sample was separated by centrifugation and then stored at – 20 °C in a 0.5-cc vial. After collection of samples, usage of enzyme-linked immunosorbent assay (ELISA) kits (DRG TGF-β1 ELISA Kits, International Inc., USA) was performed.

Principles of the test

The DRG TGF-β1 ELISA Kit is a solid phase enzyme-linked immunosorbent assay (ELISA) based on the sandwich principle.

Prior to testing, the standards and the patient sample were diluted in assay buffer, acidified with HCL and then neutralized with NaOH. Afterwards, the neutralized standards and samples were added to the antibody-coated (polyclonal) microlitre wells.

After the first incubation, the unbound sample material is removed by washing. Then a monoclonal mouse anti-TGF-β1 antibody, a biotinilated anti-mouse IgG antibody and the Streptavidin-HRP Enzyme complex were incubated. An immune enzyme sandwich complex was formed. After incubation, the unbound conjugate was washed off. Having added the substrate solution, the intensity of colour developed was proportional to the concentration of TGF-β1in the patient’s sample.

Statistical analysis

Sample size was calculated and data were coded and entered using the statistical package SPSS version 25. Data was summarized using mean and standard deviation for quantitative variables and frequencies (number of cases) and relative frequencies (percentages) for categorical variables. Comparison between both groups was done using independent sample t test or Mann-Whitney rank sum test or chi-square when appropriate. Correlation between quantitative variables was done using Pearson’s correlation coefficient, and P values less than 0.05 were considered as statistically significant.

Results

Patients’ characteristics

Patients’ demographic characteristics are shown in Table 1. The study involved 30 patients and 20 healthy individuals as a control group.

Table 1 The demographic characteristic of the study population
Full size table

The patients’ group included 15 patients with IPF, 12 patients with NSIP, 2 patients with DIP and one patient with RB-ILD. There was no statistical difference between both the patients’ group and the control group as regards the age, sex and the smoking habit.

Most of the patients had severe restrictive function (n = 17) (Fig. 1). Advanced grade of dyspnoea was present in ten patients (33.33%) (Table 2). The mean distance of 6-MWT was 148.67 ± 116.49 m.

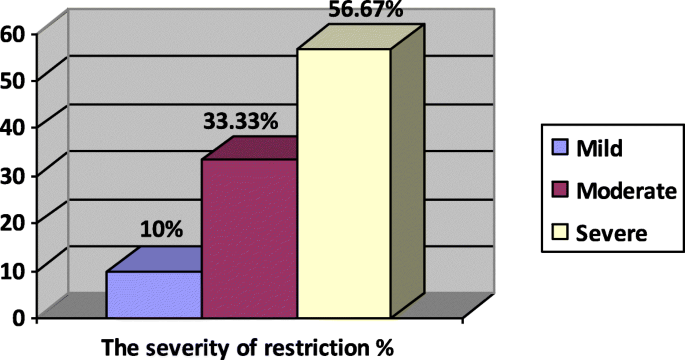

Fig. 1
figure 1

The severity of restriction in the IIP group: mild, forced vital capacity (FVC) 60–80%; moderate, FVC 40–59%; and severe restriction, FVC less than 40%

Full size image
Table 2 The clinical characteristics and ABGS of the patients' group
Full size table

The arterial blood gases parameters

The mean arterial oxygen pressure (PaO2) was 46.53 mmHg, the mean alveolar-arterial oxygen pressure (PA-aO2) difference was 51.07 mmHg and there was a normal mean arterial carbon dioxide pressure. Room air arterial oxygen saturation (SaO2) was 82% (Table 2).

Transforming growth factor-β1

The patients’ group showed significant elevation of serum level of TGF-β1 in comparison with the control group (P value < 0.001) (Table 3; Fig. 2).

Table 3 Serum level of transforming growth factor β1 in both groups
Full size table
Fig. 2
figure 2

The serum level of transforming growth factor β1 in both groups

Full size image

It is worth to attention that the serum level of TGF-β1 did not significantly differ in patients with IPF compared to patients with other forms of major IIP (mean ± SD = 300 ± 84.52 versus 340 ± 131.20 pg/ml, P value = 0.32).

Table 4 showed that there was an inverse negative correlation between the age and serum level of TGF-β1 (r = − 0.39; P = 0.03) (Fig. 3a).

Table 4 Correlation between serum levels of TGF-β1 with the clinical data
Full size table

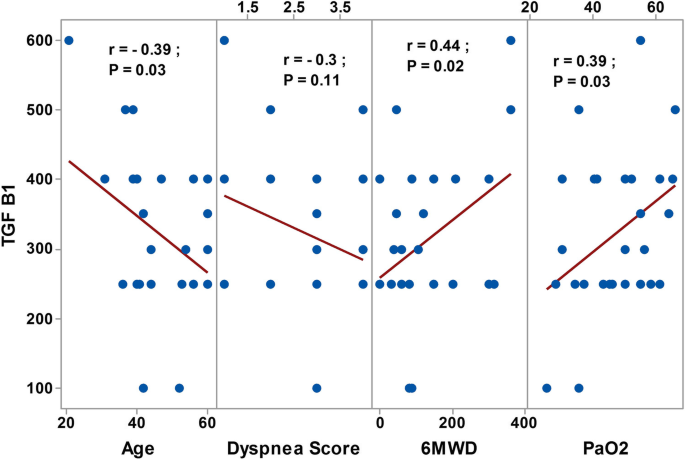

Fig. 3
figure 3

Correlation between serum levels of TGFβ1 with the clinical data and PaO2: a. Age. b. Dyspnea score. c. 6- MWD. d. PaO2

Full size image

There was an inverse non-significant correlation between the serum level of TGF-β1 and the dyspnoea score (r = − 0.30, P = 0.11) (Fig. 3b). However, there was a significant positive correlation between the serum level of TGF-β1 and distance of 6-MWT (r = 0.44; P = 0.02) (Fig. 3c).

It was also found that there was a positive correlation between the serum level of TGF-β1 and PaO2 and arterial oxygen saturation (Table 5; Fig. 3d).

Table 5 Correlation between serum levels of TGF-β1 and ABGs
Full size table

Discussion

Interstitial lung disease (ILD) is a chronic condition with distressing dyspnoea, progressive worsening of exercise capacity and decreased life expectancy.

In the current study, almost all patients were presented with moderate to severe restriction. Advanced grade of dyspnoea was a feature of almost 33% of the patients. Hypoxaemia was the main functional abnormality in those patients (Table 2).

Impairment of exercise capacity is present early in the disease and carries a worse prognosis. Exercise limitation was observed among the studied patients that were detected by a reduced distance of 6-MWT (mean ± SD = 148.67 ±116.49 m) (Table 2), in comparison to the expected 6-MWD for these patients in this age category based on Enright and Sherrill, 1998 reference equation: for men, 6-MWD = (7.57 × height in cm) − (5.02 × age) − (1.76 × weight in kg) – 309 m, and for women, 6-MWD = (2.11 × height in cm) − (2.29 × weight in kg) − (5.78 × age) + 667 m [8].

The importance of this test lies in being an independent predictor of mortality in IPF patients, where the presence of 6-MWD < 250 m carries a twofold increase in the risk of mortality as stated by du Bois and co-workers [9].

Idiopathic pulmonary fibrosis (IPF) is particularly important as it may progress rapidly in some patients to produce loss of lung function and may progress insidiously with the period of apparent symptomatic and physiological instability in others [10].

TGF-β1 plays a key role in fibroblast homeostasis and is involved in disease states characterized by excessive fibrosis, such as pulmonary fibrosis [11, 12]. It is one of the most potent inducer of extracellular matrix (ECM) production, including collagen and other matrix proteins [13]. TGF-β1 has been shown to modulate micro RNA expression [14].

The main findings in our study were that the serum level of TGF-β1 was significantly high in the patients’ group, relative to the healthy control group (Table 3; Fig. 2); besides, there was an inverse correlation between its serum level and dyspnoea score and a positive correlation with 6-MWD and PaO2 (Table 4; Fig. 3) that may appear as a controversy and reflect its possible prognostic value.

A number of studies have shown that patients with IIP had a higher serum concentration of TGF-β1 than healthy controls [15].

There was a significant negative correlation between TGF-β1 and age (Table 4), which was in accordance to Okamoto and colleagues [16].

The significant positive correlation between the serum TGF-β1 and 6-MWD was also observed in Heinemeier’s study [17] who evaluated the influence of exercise on systemic and local TGF-β1 levels, in the peri-tendon tissue sample. The outcome showed a significant increase in plasma TGF-β1 which indicated a release of the cytokine in response to exercise. The positive relation with PaO2 and arterial oxygen saturation was not explained nor expected, yet this may be due to accumulation of the TGF-β1 in tissues on the expense of the serum level in cases of tissue hypoxia (Table 5).

In the current study, the serum level of TGF-β1 in IPF patients showed no significant difference from patients with other forms of major IIP that may be due to the limited number of patients.

Conclusion

Serum level of TGF-β1 is elevated in patients with IIP and further larger studies are needed to evaluate its prognostic value.
