Endobronchial management of bronchopleural fistula using vascular plug device—a case report

Abstract

Background

Bronchopleural fistula (BPF) is a sinus tract between the pleural space and the main stem, lobar, or segmental bronchus. The development of a bronchopleural fistula (BPF) is associated with high rates of morbidity and mortality. An interdisciplinary approach, early diagnosis, and timely management of these lesions are critical in the management of such lesions.

Case presentation

We describe a case of bronchopleural fistula in a 42-year-old female patient, occurring after a surgery for pulmonary hydatid, which was successfully managed using a minimally invasive method of closure using Amplatzer vascular plug (AVP).

To our knowledge, the use of an AVP for the management of a BPF following hydatid cyst marsupialization has rarely been described in the past.

Conclusion

AVP is a useful device in the management of bronchopleural fistulas, especially in patients failing a trial of conservative management and are high-risk candidates for surgeries.

Background

BPF, a sinus tract between bronchi and the pleural space, occurs as a complication following thoracic surgeries such as lobectomy, thoracotomy, and pulmonary infection [1]. BPFs are associated with high rates of morbidity and mortality with reported mortality ranging as high as 70% [2, 3].

Treatment for BPF ranges from conservative/medical management to bronchoscopic procedures for critically ill patients and surgical intervention for those at the highest risk. There is no consensus as to the best available treatment for the management of such fistulae.

The various surgical options include thoracostomy, thoracoplasty, and direct closure of the fistula using flaps of different origins [4]. Surgery generally carries a dismal prognosis in patients with a poor general condition. Moreover, the recurrence rate of BPF following a surgical repair could be as high as 23.6% [4]. The recurrence rate of BPF following a surgical repair carries a mortality greater than 50%, which is caused by respiratory insufficiency and uncontrolled sepsis [5].

Bronchoscopic management of BPFs is based on the delivery of N- butyl cyanoacrylate glue, coils, emphysema valves, autologous blood patch, AVP, occlusive material to the fistula [1], and tracheobronchial stents [6].

Out of the abovementioned methods, coils, glue, and emphysema valves are preferred for smaller BPFs and are a poor choice for larger fistulas. Larger fistulas provide a poor framework for these occlusive materials and can lead to inadvertent migration of the occlusive material into the pleural space [7,8,9].

Blood patches have been used for the management of BPFs with poor outcome rates ranging from 27-72%. The shortcomings of blood patch for the management of BPFs include the risk of pleural infection. Also, complete closure of fistulas using blood patches required multiple bronchoscopy sessions with closure rates following the first session being as low as 56% [10].

Management of BPF using different types of stents has been described. Stents can however lead to sputum retention by impeding mucociliary clearance [7]. Also, stents were not available at our institution at the time of this case.

Amplatzer plugs have been used for the management of congenital septal defects [11], pulmonary arteriovenous malformations, anomalous venous connections, and internal iliac arteries [12, 13].

AVPs have been successfully used for the management of BPFs with no recurrent disease in almost all previously described studies (Table 1).

Table 1 Previous studies on the management of BPFs using plug devices

AVP are a good choice for BPFs which are long and wide such as the one in this case.

AVP devices are made of two discs with a central waist made of a mesh of braided nitinol. The central waist measures from 4 to 40 mm in diameter. The distal disc is about 14mm and the proximal disc is 10 mm larger, respectively, than the diameter of the central waist. This provides an anchoring lip of about 5–7 mm circumferentially.

The waist is positioned inside the defect, while the discs anchor the device on either side of the fistula. AVP devices can be collapsed into low-profile delivery sheaths (5–7 French) owing to the superelastic and shape memory properties of nitinol. This allows the advancement of the devices across the lesion [8].

The plug is attached to a 155-cm-long delivery wire with a micro screw made of stainless steel, allowing the operator to release the plug into the final position by rotating the cable using a supplied torque device. The plug can be readjusted and retrieved as needed before it is finally released. The AVP is compatible with magnetic resonance imaging (MRI), within a magnetic field of less than 3 Tesla [23].

They are designed to provide immediate effective closure of the defect, are available in a large range of sizes, and can be appropriately matched to the lesion. The presence of two disks, one on either side of the lesion, leads to greater coverage and increases the likelihood of closure, as opposed to glue, which is applied to the internal aspect alone.

The devices induce endothelial response and potentiating granulation tissue without causing airway compromise which eventually leads to closure of the fistula [13, 24].

Case presentation

A 42-year-old female, a case of pulmonary hydatidosis (Fig. 1), planned for video-assisted thoracoscopic marsupialization of hydatid cyst in the left lung on 23/07/2021. An intercostal drainage (ICD) tube was kept in the operative bed.

Fig. 1
figure 1

Posteroanterior radiograph of the chest showing a rounded opacity in the left middle and lower lung zones, suggesting a hydatid lung cyst. Similar smaller opacity is also noted in the right upper lung zone

The patient was recuperating well until day 4 after surgery when bubbling was noted through the ICD tube. This progressed to subcutaneous emphysema spreading to the neck and showed worsening progression (Fig. 2).

Fig. 2
figure 2

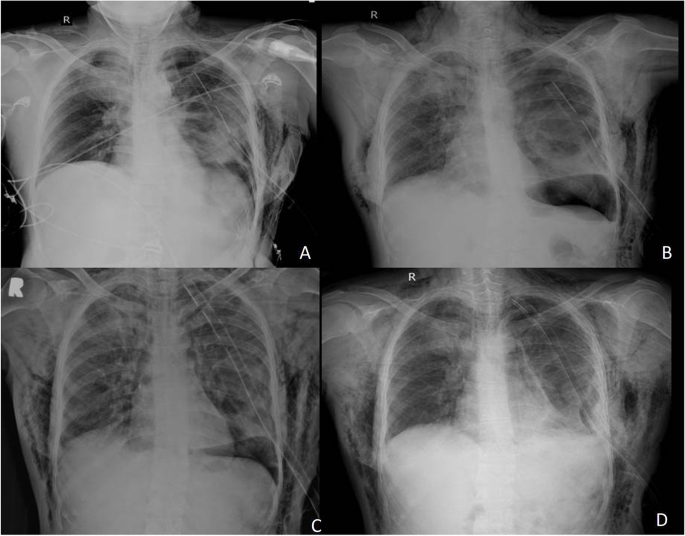

Posteroanterior radiographs on A day 4 post-surgery, B day 6 post-surgery, C day 7 post-surgery, and D day 8 post-surgery showing progressively worsening subcutaneous emphysema

Computed tomography (CT) scan of the thorax showed a fistulous communication, measuring about 1cm wide and 6cm long, between the left pleural cavity and segmental bronchus for the left lower lobe. This was suggestive of a bronchopleural fistula (Fig. 3).

Fig. 3
figure 3

A Non-contrast axial chest CT and B minimum intensity projection (MinIP) in the coronal plane showing the fistulous communication (white arrows) between the post-operative cavity (C) and the segmental bronchus for the lower lobe. Also, a note is made of the extensive subcutaneous emphysema (yellow arrows) and ICD tube in situ

As the fistula was wide and long, closure of the bronchopleural fistula using the Amplatzer vascular plug-2 (AGA Medical, Golden Valley, Minn., USA) device was planned. The patient was taken for the procedure under fluoroscopy and bronchoscopy guidance. The patient was intubated maintaining ventilation to both the lungs while the closure procedure was carried out on the fistula in the left lung.

Technique

A 9mm Amplatzer vascular plug-2 (AVP) was used for the closure of the fistula. The size of the vascular plug chosen was according to the diameter of the bronchial stump and the length of the fistula so that the device would completely cover the fistulous connection fitting within the stump. The delivery cable was introduced through the endotracheal tube under constant visualization by fluoroscopy. Once positioned within the fistula the plug was released. After its deployment, a bronchogram was performed by injecting a contrast medium through a catheter to check the position of the plug and ensure exclusion of the fistula (Fig. 4).

Fig. 4
figure 4

A Pre-deployment bronchogram, B, C bronchogram during deployment of the vascular plug, and D post-deployment bronchogram

Follow-up CT and X-rays confirmed the closure of the fistulous communication (Fig. 5).

Fig. 5
figure 5

A Non-contrast axial chest CT and B MinIP in the coronal plane showing vascular plug within the segmental bronchus for the lower lobe with a near total resolution of the cavity. Resolution of the previously noted subcutaneous emphysema

Conclusion

The endobronchial approach for the management of BPF is effective especially in patients failing a trial of conservative management and high-risk candidates for surgeries. AVP is a useful device in the armamentarium of endobronchial management of big fistulae, which cannot be managed using coils, glues, stents, or blood patches.
