A New Scoring Model to Diagnose COVID-19 Using Lung Ultrasound in the Emergency Department

The Egyptian Journal of Bronchology volume 16, Article number: 9 (2022) Cite this article

Abstract

Background

Several studies have reported the predictors of the prognosis in COVID-19 patients; however, smoking, X-ray findings of pulmonary congestion, and A-profile and areas of consolidation in LUS are independent predictors for COVID-19 infection. The new score had a sensitivity of 93.8% and a specificity of 58% for the prediction of COVID-19. Mortality in COVID-19 patients is significantly correlated with age, fever duration, cardiac history, and B-profile and areas of consolidation in LUS. However, it is negatively correlated with initial O2 saturation and ejection fraction. This study aimed to design a new scoring model to diagnose COVID-19 using bedside lung ultrasound (LUS) in the emergency department (ED).

Results

Eighty-two patients were recruited. Fifty patients (61%) were negative for COVID-19, and 32 (39%) were positive. Sixty-four patients (78%) recovered while 18 patients (22%) died. COVID-19 patients had more AB-profile and more areas of consolidation than the non-COVID-19 group (p<0.001). Smoking, congestion in X-ray, A-profile, and abnormal A line in LUS are independent predictors for COVID-19 infection. The score had a sensitivity of 93.8% and a specificity of 58% for the prediction of COVID-19. Mortality in COVID-19 patients is significantly correlated with age, fever duration, cardiac history, and B-profile and areas of consolidation in LUS. However, it is negatively correlated with initial O2 saturation and ejection fraction.

Conclusions

In conclusion, the application of our new score can stratify patients presented to ED with suspected COVID-19 pneumonia, considering that it is a good negative test. Moreover, this score may have a good impact on the safety of medical personnel.

Trial registration

ClinicalTrials.gov Identifier: NCT05077202. Registered October 14, 2021 - Retrospectively registered, https://clinicaltrials.gov/ct2/show/NCT05077202

Background

Coronavirus disease 2019 (COVID-19) pandemic is the most serious medical problem worldwide nowadays. One of the primary findings for COVID-19 is pneumonia [1, 2]. Many cases with chest infection may have similar symptoms and signs to COVID-19 infection. Real-time reverse-transcriptase polymerase chain reaction (RT-PCR) assay is the test widely used to diagnose COVID-19 [3]. However, RT-PCR test results of pharyngeal swab specimens have some variability and potential instability; therefore it should not be considered as the only indicator for diagnosis [4]

Although COVID-19 infected patients have some typical radiological computed tomography (CT) findings even in asymptomatic patients [5], atypical findings are increasingly common. Several studies have reported the predictors of the prognosis in COVID-19 patients [6, 7]. Lung ultrasound (LUS) has been widely considered over the last years due to its medical and surgical value [8, 9]. The role of LUS in the care of patients with critical respiratory conditions is nowadays widely documented [10]. LUS can help in reducing the number of health care professionals exposed during patient stratification by simple, rapid bedside test [11, 12]. LUS could be done without patient immobilization that might spread the infection. This differs from CT chest that requires patient mobilization and may be difficult in critical ventilated patients, in addition to its radiation hazards and high cost.

Many patients present to the emergency department (ED) with severe chest symptoms that need to be investigated for COVID-19 before transfer to the intensive care unit (ICU). The timely transfer of patients to ICU or a designated unit (isolation or quarantine) with sufficient rescue equipment should be considered even if their of RT-PCR test results for pharyngeal swab specimens are negative to limit the spread of infection. Therefore, the need for rapid bedside diagnostic tools is highly appreciated. In this study, we aimed to find a simple bedside investigations that could suspect the diagnosis and/or predict the prognosis of COVID-19 in ED before in-hospital admission of the patient.

Methods

Study design

The study is an international multicentre observational study that included three centres (BLINDED).

Ethical statement

After approval from the institutional review boards (IRB) of the faculty of medicine, Zagazig University ( No., 6930), all patients were properly counselled and signed informed written consent.

Patients

The study recruited all patients with pulmonary symptoms and attended to ED between 27th March 2020 and 17th May 2020. Exclusion criteria were (i) patients with congestive heart failure (n= 7), (ii) patients with known interstitial lung fibrosis and any chronic pulmonary disease (n= 4), and (iii) patients with poor echo-window (n= 4). Patients were seen first at ED, where they underwent the required investigations and then classified. Patients were questioned about symptoms suspecting COVID-19 infection. Those who met the suspected clinical and investigational criteria were given a standard mask and were rapidly transferred safely to a separate waiting and isolation area with available infrastructure and tools for hand and respiratory hygiene practice. If the patient was proved to be positive for COVID-19 according to RT-PCR assay, he was sent to quarantine. For negative patients, they were admitted to intermediate or ICU according to their clinical status. All recruited patients underwent the following: complete blood count (CBC), arterial blood gas (ABGs), RT-PCR assay to detect COVID-19, chest X-ray, chest CT, LUS, and echocardiography (according to its availability, with precautions for the operators and the probe similar to those exerted to LUS).

LUS examination

Two trained medical personnel, one ICU physician and one ICU nurse, entered the isolation room respecting all the preventive measures for respiratory, droplet, and contact isolation provided by the world health organization for the COVID-19 outbreak. The ultrasound probe and the tablet were put in two different sterile plastic probes and tablet covers. Imaging was performed using a curvilinear probe (2–5 MHz) with different devices according to the availability in each centre. Six-point LUS (three in each hemithorax) was performed as described in the bedside lung ultrasonography in emergency (BLUE) protocol [13].

Statistical analysis

Statistical analysis included comparing different parameters between COVID-19 positive-patients and COVID-19 negative-patients, using independent t-test for numerical variables and chi-square for categorical variables. All significantly different variables were entered in a forward stepwise binary logistic regression analysis to select the best model. After selecting the best model. The variable chosen in the last step was weighed using the odds ratios (ORs) calculated from the regression coefficient (β) for each variable, the ORs were multiplied by 0.125 to calculate a score for each variable and the number was rounded to the nearest integer giving of scoring system of 10 points. All study patients were scored. The cutoff point of the score was calculated using ROC analysis, and calculation of sensitivity and specificity was performed. Also, variables associated with mortality in COVID-19 positive were entered in a forward binary logistic regression, which selected the best model, and the ORs were calculated for each variable using the regression coefficient (β). Before adding the variables in the regression analysis, the proper cutoff values of different contenious variables were determined using ROC analysis. Patient Data were entered, checked, and analyzed using SPSS for Windows version 16 (SPSS, Inc. Chicago, IL, USA). For all the above mentioned statistical tests, the threshold of significance is fixed at a 5% level (p < 0.05).

Results

Patients

Eighty-two patients were recruited (50 males, 32 females; mean age, 57.2 ± 15.23 years). Fifty patients (61%) were negative for COVID-19, while 32 (39%) were positive. The mean hospital stay was 14 ± 4.14 days. Sixty-four patients (78%) were recovered and discharged to home, and 18 patients (22%) died within 2 weeks of follow-up. There was a significant difference between COVID-19 and non- COVID-19 patients regarding smoking (p = 0.01), while there was no significant difference between both groups regarding sex, diabetes, hypertension, and cardiac disease (Table 1).

Table 1 The patients’ demographic and clinical data
Full size table

Imaging findings

There was a highly significant difference between both groups in the context of lung congestion in X-ray with more congestion profile in COVID-19 patients (p = 0.0004). In CT chest, there was more consolidation and ground-glass appearance among COVID-19 positive-patients (p < 0.001) (Fig. 1), while they had less pleural effusion than COVID-19 negative-patients (p = 0.026). Concerning LUS, there were more areas of consolidation in the COVID-19 positive group (p < 0.001). There was no significant difference between both groups regarding the number of B lines per SLF (p = 0.17), while there was a significant difference between both groups concerning the distance between B lines with closer, more confluent lines in COVID-19 related pneumonia (p < 0.001) (Table 2) (Figs. 2 and 3). There was a negative correlation between the distance of B lines on one side and ground glass/ consolidation by CT on the other side (p < 0.01)

Fig. 1
figure 1

A 62-year-old man restaurant owner was admitted to the emergency room (ER) with a 3-day history of fever (38.2°C/100.8°F) and dyspnea. He reported no other symptoms, nor had a history of travels abroad nor exposure to patients infected or suspected of contagious COVID-19. Xray findings: consolidation with linear brochogram in both lobes us findings: very thick pleural line, Multiple B-lines EF: 40-45% CT findings: GGO and massive consolidation in the posterior parts of the lower lobes. Lymphocytes when he inserted in ICU: 6, 62% troponine at 1st 24h in ICU: 3.2 pg/n. He was confirmed to have Covid19 by PCR

Full size image
Table 2 Imaging findings
Full size table
Fig. 2
figure 2

The second patient is 43-year-old male patient complaining of fever for 3 days associated with cough, symptoms of pharyngitis and dyspnea. He is a moderate smoker. He was telling a history of close contact with Covid-19 infected patient. He was examined in ER, and was hemodynamically stable but with high temperature (38.9° C) and with O2 saturation of 91%. Chest X ray revealed bilateral reticulo-nodular infiltrates in both middle and lower lung lobes. Lung ULS showed areas of consolidation and thick smooth pleural line. B-lines were few and dispersed and there was no pleural effusion. He has low score of suspicion and proved to be non-Covid after 3 PCR swabs

Full size image
Fig. 3
figure 3

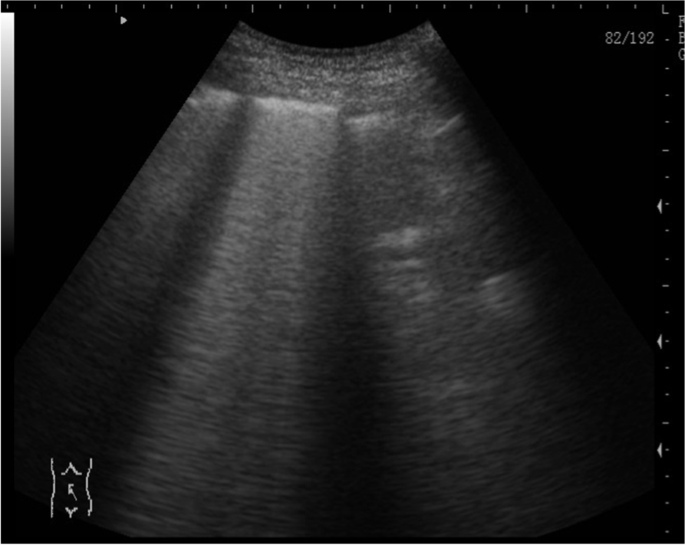

LUS of a non-COVID-19 patient showed areas of consolidation with small areas of air bronchogram and thick smooth pleural line. B-lines were few and not so confluent

Full size image

Validity of new score

Linear regression analysis for the independent predictors for being COVID-19 positive was done (Table 3). Smoking, congestion in x-ray, LUS profile-A, and abnormal A line in LUS were detected to be significant independent predictors for COVID-19 infection. We considered abnormal A lines in (A thick pleural line that may suggest findings such as pneumonia, ARDS, or fibrosis. In addition, an irregular pleural line (Interrupted dense artifact) that is pathologic and may suggest pulmonary fibrosis or pneumonia.

Table 3 Variables in the regression model
Full size table

A scoring system for the prediction of COVID-19 diagnosis using clinical and radiological data was created. According to the odds ratio from the regression equation, smoking was given 1 point, abnormal A line was given 2 points, congestion in x-ray was given 3 points, and LUS profile-A was given 4 points. We analyzed the data set of our score to determine the best score for predicting COVID-19 diagnosis using the ROC curve. ROC analyses (Fig. 4) yielded an ideal score of >5 for detecting COVID-19 positive-patients (AUC: 0.902, 95% CI: 0.883- 0.971, p <0.001). The application of this score was associated with a sensitivity of 93.8% and specificity of 58%.

Fig. 4
figure 4

ROC curve constructed to determine the cutoff value of the score with a sensitivity of 93.8% and a specificity of 58% in detecting COVID-19 positive patients

Full size image

Correlation in COVID-19 positive-patients

By performing the correlation between clinical, laboratory, and radiological factors in COVID-19 positive-patients on one side and mortality on the other side (Table 4), we found that there was a significant positive correlation between mortality and each of age, duration of fever, presence of cardiac disease including hypertension, and presence of B-profile, and areas of consolidation in LUS. There was a significant negative correlation between mortality and initial O2 saturation and ejection fraction (EF) in echocardiography.

Table 4 Correlation in COVID-19 positive patients
Full size table

Discussion

Due to the lack of a standardized score for COVID-19 patients, some clinicians depend on other previously validated scores [14], such as the lung ultrasound aeration score [15]. We designed a new scoring model including four items and tested its validity in predicting COVID-19 using bedside LUS in the ED. We found that all four items of our score were significant independent predictors for COVID-19 infection by linear regression analysis. This score has high sensitivity (93.8%) in detecting COVID-19 infection, making it a good negative test. In patients with suspected COVID-19 or those presented to ED, applying this new score help physicians exclude those non-infected patients as a first screening step before dealing with them. The application of this score may have a good impact on the safety of medical personnel.

In COVID-19, different grades of multiple B-lines with patchy distribution could be seen. Distance between B-lines is so variable that it could be distanced or confluent until the appearance of ‘white lung’ [14]. Some case reports described the findings of LUS in confirmed COVID-19 patients and reported an irregular pleural line with small subpleural consolidations, areas of white lung, and thick, confluent and irregular vertical artifacts (B-lines) [13]. Although our results carry variable findings, however, our results found that areas of consolidation in LUS are independent predictors for COVID-19 infection. LUS was reported to have 86% diagnostic accuracy in detecting alveolar consolidation and was able to differentiate between effusion and consolidation. Its specificity for detecting consolidation reached 100% in some studies [10].

Regarding the prognosis of COVID-19 infected patients, we analyzed the predictors for mortality. Old age, presence of cardiac problems and hypoxia on admission are clinical predictors of mortality. This is concordant with previous reports [6, 16].

Concerning LUS, we presented imaging predictors for mortality using this simple, safe, and cheap tool in COVID-19 patients. In our study, B-LUS profile and areas of consolidation were associated with mortality. Areas for consolidation was also correlated with prolonged hospitalization. This may also direct the medical staff to determine patients needing high care and those needing a long hospital stay.

Regarding other investigations, CT chest shows more consolidation and ground glass appearance in COVID-19 infected patients. This is consistent with other reports showing prominent radiologic abnormalities were bilateral ground-glass opacity and subsegmental consolidation areas [7, 17].

Our laboratory findings showed that COVID-19 infected patients had less blood O2 saturation and less lymphocytic count than other causes of pneumonia. However, in our study, lymphopenia has not reached a significant degree of correlation with mortality. Other reports showed the predominance of lymphopenia in COVID-19 infection among critical than other less critical patients and was associated with a severe course [6, 18]. A study conducted by Zhou et al. [6], found that baseline lymphocyte count was significantly higher in survivors than non-survivors of COVID-19 infected patients. However, in survivors, lymphocyte count improved after the 1st week of illness, whereas severe lymphopenia remained until death in non-survivors.

This study had some limitations. First, small number of patients is the main limitation of our study. Second, our score validity was tested on the same study cases, so we recommend further large studies in other centers in different situations to validate our ultrasound score.

Conclusions

In conclusion, the application of our new score can stratify patients presented to ED with suspected COVID-19 pneumonia, considering that it is a good negative test. Moreover, this score may have a good impact on the safety of medical personnel.

Availability of data and materials

all data and materials are available.

Abbreviations

COVID-19:

Coronavirus disease 2019

SARS-Cov-2:

Severe acute respiratory syndrome coronavirus 2

LUS:

Lung ultrasound

NCIP:

Novel coronavirus infected pneumonia

CFR:

Case fatality rate

GGO:

Ground-glass opacity

RT-PCR:

Real-time reverse transcriptase-polymerase chain reaction

References

  1. Zhu N, Zhang D, Wang W, Li X, Yang B, Song J et al (2020) A novel coronavirus from patients with pneumonia in China, 2019. N Engl J Med 382:727–733

    Article  CAS  Google Scholar

  2. Li Q, Guan X, Wu P, Wang X, Zhou L, Tong Y et al (2020) Early Transmission Dynamics in Wuhan, China, of Novel Coronavirus-Infected Pneumonia. N Engl J Med 382:1199–1207

    Article  CAS  Google Scholar

  3. Corman Victor M, Olfert L, Marco K, Richard M, Adam M, Chu Daniel KW et al (2020) Detection of 2019 novel coronavirus (2019-nCoV) by real-time RT-PCR. Eurosurveillance 25:1–8

    Google Scholar

  4. Li Y, Yao L, Li J, Chen L, Song Y, Cai Z, Yang C (2020) Stability issues of RT-PCR testing of SARS-CoV-2 for hospitalized patients clinically diagnosed with COVID-19. J Med Virol 92:1–6

    Article  Google Scholar

  5. Shi H, Han X, Jiang N, Cao Y, Alwalid O, Gu J et al (2020) Radiological findings from 81 patients with COVID-19 pneumonia in Wuhan, China: a descriptive study. Lancet Infect Dis 20:425–434

    Article  CAS  Google Scholar

  6. Zhou F, Yu T, Du R, Fan G, Liu Y, Liu Z et al (2020) Clinical course and risk factors for mortality of adult inpatients with COVID-19 in Wuhan, China: a retrospective cohort study. Lancet 395:1054–1062

    Article  CAS  Google Scholar

  7. Guo W, Li M, Dong Y, Guo W, Li M, Dong Y, Zhou H, Zhang Z, Tian C et al (2020) Diabetes is a risk factor for the progression and prognosis of COVID-19. Diabetes Metab Res Rev 31:e3319

    Google Scholar

  8. Soldati G, Smargiassi A, Inchingolo R, Sher S, Nenna R, Valente S et al (2014) Lung ultrasonography may provide an indirect estimation of lung porosity and airspace geometry. Respiration 88:458–468

    Article  Google Scholar

  9. Soldati G, Demi M, Smargiassi A, Inchingolo R (2019) The role of ultrasound lung artifacts in the diagnosis of respiratory diseases. Expert Rev Respir Med 13:163–172

    Article  CAS  Google Scholar

  10. Danish M, Agarwal A, Goyal P, Gupta D, Lal H, Prasad R et al (2019) Diagnostic performance of 6-point lung ultrasound in ICU patients: a comparison with chest X-ray and CT thorax. Turk J Anaesthesiol Reanim 47(4):307

    Article  Google Scholar

  11. Soldati G, Smargiassi A, Inchingolo R, Buonsenso D, Perrone T, Briganti DF et al (2020) Is There a Role for Lung Ultrasound During the COVID-19 Pandemic? J Ultrasound Med 39(7):1459–1462

    Article  Google Scholar

  12. Buonsenso D, Piano A, Raffaelli F, Bonadia N, De Gaetano DK, Franceschi F (2020) Point-of-Care Lung Ultrasound findings in novel coronavirus disease-19 pnemoniae: a case report and potential applications during COVID-19 outbreak. Eur Rev Med Pharmacol Sci 24:2776–2780

    CAS  PubMed  Google Scholar

  13. Lichtenstein DA (2015) BLUE-Protocol and FALLS-Protocol: Two Applications of Lung Ultrasound in the Critically Ill. Chest 147:1659–1670

    Article  Google Scholar

  14. Gargani L, Soliman-Aboumarie H, Volpicelli G, Corradi F, Pastore MC, Cameli M (2020) Why, when, and how to use lung ultrasound during the COVID-19 pandemic: enthusiasm and caution. Eur Heart J Cardiovasc Imaging 21:941–948

    Article  Google Scholar

  15. Bouhemad B, Mongodi S, Via G, Rouquette I (2015) Ultrasound for “Lung Monitoring” of Ventilated Patients. Anesthesiol J Am Soc Anesthesiol 122:437–447

    Google Scholar

  16. Ruan Q, Yang K, Wang W, Jiang L, Song J (2020) Clinical predictors of mortality due to COVID-19 based on an analysis of data of 150 patients from Wuhan, China. Intensive Care Med 46:846–848. https://doi.org/10.1007/s00134-020-05991-x

    Article  CAS  PubMed  Google Scholar

  17. Chen N, Zhou M, Dong X, Qu J, Gong F, Han Y (2020) Epidemiological and clinical characteristics of 99 cases of 2019 novel coronavirus pneumonia in Wuhan, China: a descriptive study. Lancet 395:507–513

    Article  CAS  Google Scholar

  18. Huang C, Wang Y, Li X, Ren L, Zhao J, Hu Y (2020) Clinical features of patients infected with 2019 novel coronavirus in Wuhan, China. Lancet 395:497–506

    Article  CAS  Google Scholar
